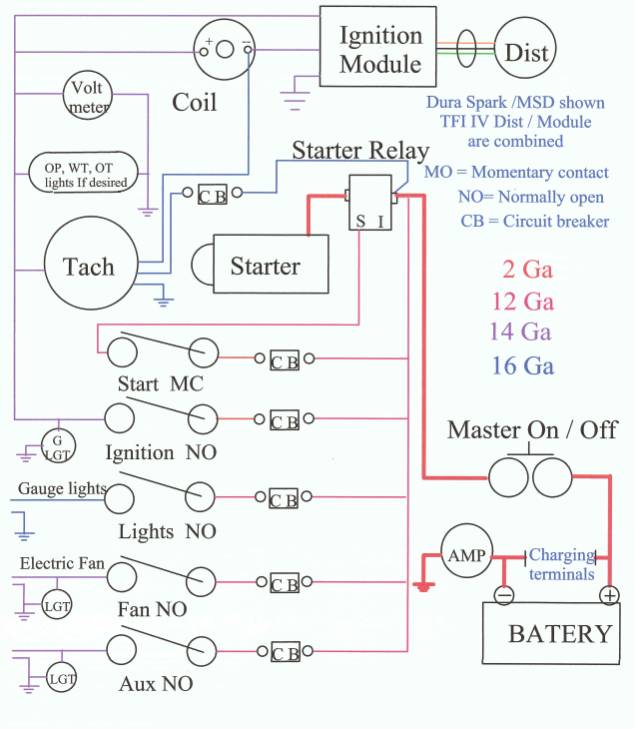

Basic wiring diagram
for Ford race cars with Dura Spark of TFI IV ignitions. |
|
|
|
Use with mechanical Oil pressure, Water & Oil
temperature gauges |
|
|
Can use with electrical Oil pressure, Water &
Oil temperature gauges |
|
|
|
|
|
|
Courtesy of |
|
|
© Automotive Component Engineering 2006/2012 |
|
|
